AHRC17/AHRR17 Design Features
SPLIT SYSTEM AIR HANDLING UNIT
HIGH PERFORMANCE AIR HANDLING UNIT WITH AN IMPENETRABLE INTERNAL METAL LINING DESIGN++
- Circular Cabinet Design of continuous curvature suppresses flow corner singularities and eddies for higher energy efficiency++
- Insulated double walls in cylindrical and rectangular cabinets reduce energy Losses; sound power level and air leakage rate to ASHRAE standards.
- Inner sheet metal wall lining prevents airflow contacts with fiberglass insulation and dust particles for high Indoor Air Quality (IAQ)
- Designed specifically for high IAQ requirements in Homes, Schools, Healthcare facilities and Government/Public Offices.
- Equipped with Thermostatic Expansion Valve (TXV), Transformer, Time-delay; and direct drive programmable ECM motors for efficient operation
- Carefully rated heating elements for comfortable room temperatures
- Direct Expansion coils are designed with rifled tubing, louvered surface and rippled Edge aluminum fins for high energy efficiency
- Powder-coated pre-painted cabinet for rust-free appearance
- All copper joints are sweat connections to prevent refrigerant leaks
- Several electrical knockouts provided for direct access to power supply and low-voltage lines
- Mounting tracks provide easy installation and removal of evaporator coil
- Multi-position cabinet installation with support brackets for circular cabinet
- Removable sliding filter-racks for easy access for installation and removal of air filters
- Capacity and Efficiency based designs
- Meet AHRI and ASHRAE Standards and conform to ETL Testing Standards
Nomenclature
| AHR | C | 17 | 048 | A | A | V | 1 | 1 | 1 | 1 | 00 |
| Product Type | Cabinet Configuration | Efficiency | Unit Capacity | Coil Arrangement | Series Revision | Cabinet Orientation | Evaporator Motor Type | Refrigerant Type | Throttling Device | Voltage | Heating Size |
Product Type
AHR = Air Handling Unit for Residential Split System
Cabinet Configuration
C = Circular
R = Rectangular
Matching Unit Efficiency
(Seasonal Energy Efficiency Rating – SEER)
13 – 13 SEER
14 – Up to 14 SEER
15 – Up to 15 SEER
16 – Up to 16 SEER
17 – Up to 17 SEER
18 – Up to 18 SEER
21 – Up to 21 SEER
Matching Unit Capacity (Nominal)
024 = 2 Tons (24,000 Btu/h)
030 = 2 ½ Tons (30,000 Btu/h)
036 = 3 Tons (36,000 Btu/h)
042 = 3 ½ Tons (42,000 Btu/h)
048 = 4 Tons (48,000 Btu/h)
060 = 5 Tons (60,000 Btu/h)
Coil Arrangement
A = A-Coil
P = Parallel Slabs (Tandem)
C = Circular Coil
Series Revision
A = Revision A (Coil Configuration, etc.)
(Contact Manufacturer)
AHR = Air Handling Unit for Residential Split System
Cabinet Configuration
C = Circular
R = Rectangular
Matching Unit Efficiency
(Seasonal Energy Efficiency Rating – SEER)
13 – 13 SEER
14 – Up to 14 SEER
15 – Up to 15 SEER
16 – Up to 16 SEER
17 – Up to 17 SEER
18 – Up to 18 SEER
21 – Up to 21 SEER
Matching Unit Capacity (Nominal)
024 = 2 Tons (24,000 Btu/h)
030 = 2 ½ Tons (30,000 Btu/h)
036 = 3 Tons (36,000 Btu/h)
042 = 3 ½ Tons (42,000 Btu/h)
048 = 4 Tons (48,000 Btu/h)
060 = 5 Tons (60,000 Btu/h)
Coil Arrangement
A = A-Coil
P = Parallel Slabs (Tandem)
C = Circular Coil
Series Revision
A = Revision A (Coil Configuration, etc.)
(Contact Manufacturer)
Cabinet Orientation
V = Vertical
H = Horizontal
M = Multi-Position
Evaporator Motor Type
1 = PSC, GE
2 = ECM, GE
Refrigerant Type
1 = R-410A
2 = R-22
Throttling Device
1 = Thermostatic Expansion Valve (TXV)
2 = Automatic Expansion Valve (AXV)
3 = Orifice (Piston) Expansion Valve
Voltage
1 = 208/230 V, 1Ph., 60 Hz.
2 = 208/230 V, 1Ph., 50 Hz.
Heating Size
00 = No Heat
03 = 3kW
04 = 4kW
05 = 5kW
10 = 10kW
12 = 12.5kW
15 = 15kW
17 = 17.5kW
20 = 20kW
25 = 25kW
V = Vertical
H = Horizontal
M = Multi-Position
Evaporator Motor Type
1 = PSC, GE
2 = ECM, GE
Refrigerant Type
1 = R-410A
2 = R-22
Throttling Device
1 = Thermostatic Expansion Valve (TXV)
2 = Automatic Expansion Valve (AXV)
3 = Orifice (Piston) Expansion Valve
Voltage
1 = 208/230 V, 1Ph., 60 Hz.
2 = 208/230 V, 1Ph., 50 Hz.
Heating Size
00 = No Heat
03 = 3kW
04 = 4kW
05 = 5kW
10 = 10kW
12 = 12.5kW
15 = 15kW
17 = 17.5kW
20 = 20kW
25 = 25kW
AIR HANDLING UNIT SPECIFICATIONS
| MODEL | AHRC17024 AHRR17024 |
AHRC17030 AHRR17030 |
AHRC17036 AHRR17036 |
AHRC17042 AHRR17042 |
AHRC17048 AHRR17048 |
AHRC17060 AHRR17060 |
| Nominal Cooling Capacity, Btu/h | 24,000 | 30,000 | 36,000 | 42,000 | 48,000 | 60.000 |
| Evaporator Coil Refrigerant Type: | R-410A | R-410A | R-410A | R-410A | R-410A | R-410A |
| TXV Size (A/C & HP): | 2 Ton | 2 Ton | 3 Ton | 3 Ton | 4 Ton | 5 Ton |
| Coil Model Number (Contact Manufacturer): | AH16221636 | AH16221636 | AH16261636 | AH16261636 | AH16301636 | AH16301636 |
| Total Face Area (Sq.Ft.): | 4.89 | 4.89 | 5.78 | 5.78 | 6.67 | 6.67 |
| Coil Arrangements:(Contact Manufacturer): | A TANDEM CIRCULAR |
A TANDEM CIRCULAR |
A TANDEM CIRCULAR |
A TANDEM CIRCULAR |
A TANDEM CIRCULAR |
A TANDEM CIRCULAR |
| Refrigerant Line Set: | ||||||
| Liquid Line Size: | 3/8” | 3/8” | 3/8” | 3/8” | 3/8” | 3/8” |
| Suction Line Size: | 3/4” | 3/4” | 3/4” | 7/8” | 7/8” | 7/8” |
| Blower and Motor: | ||||||
| Blower Wheel Width: | 7 1/8” | 7 1/8” | 8” | 8” | 10 5/8” | 10 5/8” |
| Blower Wheel Diameter: | 9 1/2” | 9 1/2” | 9 1/2” | 9 1/2” | 12 1/4” | 12 1/4” |
| Housing Discharge: | 9 3/16” x 10 1/4” | 9 3/16” x 10 1/4” | 10 ½” x 11 3/8” | 10 ½” x 11 3/8” | 13 3/16” x 13 5/8” | 13 3/16” x 13 5/8” |
| Blower Motor, FLA/HP: | 3.5/ 1/2 | 3.5/ 1/2 | 3.5/ 1/2 | 3.5/ 1/2 | 4.6/ 3/4 | 4.6/ 3/4 |
| Rated Voltage (@60Hz): | 208/230 | 208/230 | 208/230 | 208/230 | 208/230 | 208/230 |
| SCFM RANGE High-Low: | ||||||
| (i) Nominal Cool/heat: | 600-800 | 700-1000 | 850-1200 | 900-1400 | 900-1600 | 1400-2000 |
| (ii) Dehumidification: | 419-600 | 419-750 | 639–900 | 842-1000 | 875-1200 | 1027-1400 |
| Electric Heater, Kw*: | 10 | 12.5 | 15 | 17.5 | 20 | 25 |
| MCA/MOP** 208V MCA/MOP** 230V |
49.5/50 54.4/60 |
60.7/70 66.9/70 |
72.0/80 79.4/80 |
83.3/90 91.9/100 |
95.9/100 105.8/110 |
117.0/25 129.4/150 |
| Cabinet Size(AHRCA) | AHRC17024 | AHRC17030 | AHRC17036 | AHRC17042 | AHRC17048 | AHRC17060 |
| Air Discharge Opening: | 11” x 15 3/8” | 11” x 15 3/8” | 11” x 19 1/4” | 11” x 19 1/4” | 13 1/2″ x 22” | 13 1/2″ x 22” |
| Cabinet Diameter | 27 1/2” | 27 1/2” | 27 1/2” | 27 1/2” | 27 1/2” & 33” | 27 1/2” & 33” |
| Cabinet Height | 49 1/4” | 49 1/4” | 53 1/4” | 53 1/4” | 59 7/8” | 59 7/8” |
| Installed/Shipping Weight | 206/221 | 206/221 | 234/249 | 234/249 | 300/320 | 300/320 |
| Cabinet Size(AHRRA): | AHRR17024 | AHRR17030 | AHRR17036 | AHRR17042 | AHRR17048 | AHRR17060 |
| Air Discharge Opening | 11” x 15 3/8” | 11” x 15 3/8” | 11” x 19 1/4” | 11” x 19 1/4” | 13 1/2″ x 22” | 13 1/2″ x 22” |
| Cabinet Length (Side) | 21” | 21” | 21” | 21” | 21 7/8” | 21 7/8” |
| Cabinet Width (Front) | 22” | 22” | 22” | 22” | 25 1/2” | 25 1/2” |
| Cabinet Height | 49 1/4” | 49 1/4” | 53 1/4” | 53 1/4” | 59 7/8” | 59 7/8” |
| Installed/Shipping Weight | 165/177 | 165/177 | 200/215 | 200/215 | 260/277 | 260/277 |
*See heater sizing; **Min. Circuit Ampacity/Max. Overcurrent Protection (Heater & Blower Motor Amps); ++Subject to Revision

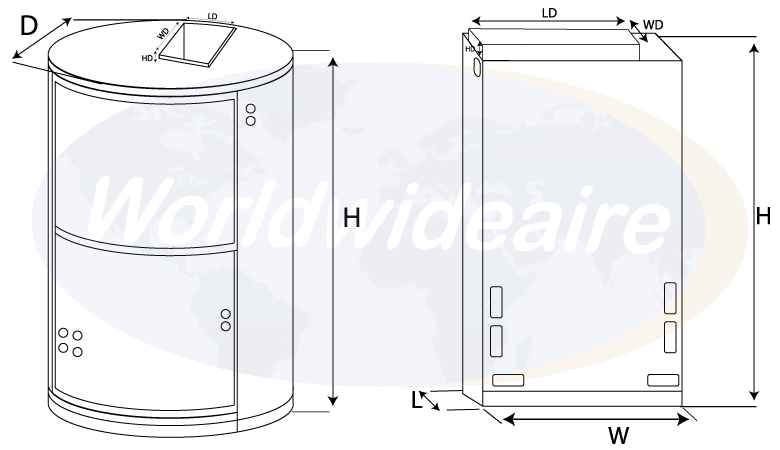

DIMENSIONS
| MODEL | DIMENSIONS+ | |
| D | H | |
| AHRC17024 | 27 1/2 | 49 1/4 |
| AHRC17030 | 27 1/2 | 49 1/4 |
| AHRC17036 | 27 1/2 | 53 1/4 |
| AHRC17042 | 27 1/2 | 53 1/4 |
| AHRC17048 | 27 ½ &33 | 59 7/8 |
| AHRC17060 | 27 ½ &33 | 59 7/8 |
| MODEL | DIMENSIONS+ | ||
| L | W | H | |
| AHRR17024 | 21 | 22 | 49 1/4 |
| AHRR17030 | 21 | 22 | 49 1/4 |
| AHRR17036 | 21 | 22 | 53 1/4 |
| AHRR17042 | 21 | 22 | 53 1/4 |
| AHRR17048 | 21 7/8 | 25 1/2 | 59 7/8 |
| AHRR17060 | 21 7/8 | 25 1/2 | 59 7/8 |
+Dimensions in inches
AHRI 210/240 STANDARD RATINGS
| OUTDOOR UNIT SERIES | INDOOR UNIT SERIES | COOLING CAPACITY | ENERGY EFFICIENCY | INDOOR(CFM) HIGH/LOW | |||||
| OUTDOOR UNIT MODEL | OUTDOOR COIL MODEL | INDOOR UNIT MODEL | INDOOR COIL MODEL | TOTAL CAPACITY | S.H.R** | ||||
| EER^ | SEER^^ | ||||||||
| CRC17024*2211 CRR17024*2211 |
CR361102415 | AHRC17024*** AHRR17024*** |
AH16221634 AH16221636+ AH16221638 |
25650 | 0.71 | 13.12 | 17.20 | 825/660 | |
| CRC17030*2211 CRR17030*2211 |
CR361102415 | AHRC17030*** AHRR17030*** |
AH16221634 AH16221636+ AH16221638 |
32102 | 0.68 | 13.30 | 17.33 | 920/736 | |
| CRC17036*2211 CRR17036*2211 |
CR361102427 | AHRC17036*** AHRR17036*** |
AH16261634 AH16261636 AH16261638+ |
38250 | 0.73 | 13.28 | 17.19 | 1090/872 | |
| CRC17042*2211 CRR17042*2211 |
CR401102427 | AHRC17042*** AHRR17042*** |
AH16261634 AH16261636 AH16261638+ |
45125 | 0.72 | 13.33 | 17.02 | 1372/1098 | |
| CRC17048*2211 CRR17048*2211 |
CR421102229 | AHRC17048*** AHRR17048*** |
AH16301634 AH16301636 AH16301638+ |
50045 | 0.67 | 13.54 | 17.21 | 1510/1208 | |
| CRC17060*2211 CRR17060*2211 |
CR421102229 | AHRC17060*** AHRR17060*** |
AH16301634 AH16301636 AH16301638+ |
59996 | 0.70 | 13.50 | 17.15 | 1895/1516 | |
**S.H.R. = Sensible Heat Ratio +Indoor Coil Used for the Rating ^Energy Efficiency Ratio ^^Seasonal Energy Efficiency Ratio
