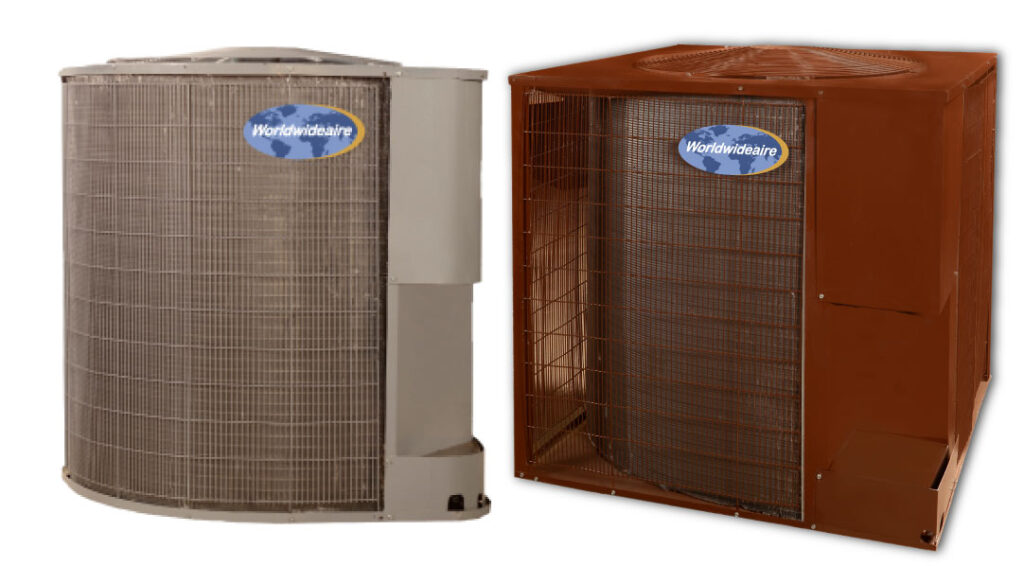

CRC14/CRR14
14 SEER/2-5 Tons
SPLIT SYSTEM CONDENSING UNIT
24,000-60,000 Btu/h Cooling Capacity
HIGH PERFORMANCE SERIES IIR410A/GREEN PRODUCTSII
DESIGN FEATURES:
- Oval coil design suppresses flow recirculation, separation and corner singularities for high energy efficiency+
- R-410A Environment friendly refrigerant
- Energy-efficient single and two-stage Scroll compressors
- High performance PSC and ECM motors
- Rifled copper tube/enhanced aluminum Lanced fin
- High and low pressure switches for equipment protection
- Equipped with Emerson Comfort Alert Diagnosis
- Powdered coated cabinet to prevent rust
- Easy access to covered and protected service valves
- Sound level in 70-75 dBA range with compressor blanket
- Conform to AHRI/ASHRAE Standards
- Meet Energy-Star ratings
CONDENSING UNIT NOMENCLATURE
| CR | C | 14 | 030 | C | A | 1 | 1 | 1 | 1 |
| Product Type | Cabinet Configuration | Unit Efficiency | Unit Capacity | Operating Mode | Series Revision | Compressor Type | Condenser Motor Type | Throttling Device | Voltage |
Product Type
CR = Condensing Unit for Residential Split System
Cabinet Configuration
C = Circular Oval
R = Rectangular
Unit Efficiency
(Seasonal Energy Efficiency Rating – SEER)
13 – 13 SEER
14 – Up to 14 SEER
15 – Up to 15 SEER
16 – Up to 16 SEER
17 – Up to 17 SEER
18 – Up to 18 SEER
21 – Up to 21 SEER
Unit Capacity (Nominal)
024 = 2 Tons (24,000 Btu/h)
030 = 2 ½ Tons (30,000 Btu/h)
036 = 3 Tons (36,000 Btu/h)
042 = 3 ½ Tons (42,000 Btu/h)
048 = 4 Tons (48,000 Btu/h)
060 = 5 Tons (60,000 Btu/h)
Operating Mode
C = Cool Only
H = Heat Pump
Series Revision
Coil Configuration, etc.
(Contact Manufacturer)
CR = Condensing Unit for Residential Split System
Cabinet Configuration
C = Circular Oval
R = Rectangular
Unit Efficiency
(Seasonal Energy Efficiency Rating – SEER)
13 – 13 SEER
14 – Up to 14 SEER
15 – Up to 15 SEER
16 – Up to 16 SEER
17 – Up to 17 SEER
18 – Up to 18 SEER
21 – Up to 21 SEER
Unit Capacity (Nominal)
024 = 2 Tons (24,000 Btu/h)
030 = 2 ½ Tons (30,000 Btu/h)
036 = 3 Tons (36,000 Btu/h)
042 = 3 ½ Tons (42,000 Btu/h)
048 = 4 Tons (48,000 Btu/h)
060 = 5 Tons (60,000 Btu/h)
Operating Mode
C = Cool Only
H = Heat Pump
Series Revision
Coil Configuration, etc.
(Contact Manufacturer)
Compressor Type
1 – R410 Single Stage (1 Speed) Copeland Scroll Compressor
2 – R410 Two Stage (2 Speeds) Copeland Scroll Compressor
3 – R410 Digital (Variable Speeds) Copeland Scroll Compressor
Condenser Motor Type
1 = PSC, GE
2 = ECM, GE
Throttling Device
1 = Thermostatic Expansion Valve (TXV)
2 = Automatic Expansion Valve (AXV)
3 = Orifice (Piston) Expansion Valve
Voltage Type
1 – 208/230 V, 1 Ph., 60 Hz.
2 – 208/230 V, 1 Ph., 50 Hz.
3 – 208/230 V, 3 Ph., 60 Hz.
4 – 480 V, 3 Ph., 60 Hz.
5 – 460/230 V, 3 Ph., 60 Hz.
6 – 380/415 V, 3 Ph., 50 Hz.
7 – 575V, 3 Ph., 60Hz
1 – R410 Single Stage (1 Speed) Copeland Scroll Compressor
2 – R410 Two Stage (2 Speeds) Copeland Scroll Compressor
3 – R410 Digital (Variable Speeds) Copeland Scroll Compressor
Condenser Motor Type
1 = PSC, GE
2 = ECM, GE
Throttling Device
1 = Thermostatic Expansion Valve (TXV)
2 = Automatic Expansion Valve (AXV)
3 = Orifice (Piston) Expansion Valve
Voltage Type
1 – 208/230 V, 1 Ph., 60 Hz.
2 – 208/230 V, 1 Ph., 50 Hz.
3 – 208/230 V, 3 Ph., 60 Hz.
4 – 480 V, 3 Ph., 60 Hz.
5 – 460/230 V, 3 Ph., 60 Hz.
6 – 380/415 V, 3 Ph., 50 Hz.
7 – 575V, 3 Ph., 60Hz
CONDENSING UNIT SPECIFICATIONS
| MODELS: | CRC14024 CRR14024 |
CRC14030 CRR14030 |
CRC14036 CRR14036 |
CRC14042 CRR14042 |
CRC14048 CRR14048 |
CRC14060 CRR14060 |
| UNIT CAPACITY | ||||||
| Nominal Cooling (Btu/h) | 24,000 | 30,000 | 36,000 | 42,000 | 48,000 | 60,000 |
| SEER (Nominal) | 14 | |||||
| Compressor | COPELAND SCROLL | |||||
| RLA | 13.5 | 12.8 | 14.1 | 17.9 | 19.9 | 26.4 |
| LRA | 58.3 | 64.0 | 77.0 | 112.0 | 109.0 | 134.0 |
| REFRIGERATION SYSTEM | ||||||
| Refrigerant Type | R-410A | |||||
| Refrigerant Line Set: | ||||||
| Liquid Line Diameter | 3/8” | 3/8” | 3/8” | 3/8” | 3/8” | 3/8” |
| Suction Line Diameter | 3/4” | 3/4” | 3/4” | 7/8” | 7/8” | 7/8” |
| Discharge Line Diameter | 1/2” | 1/2” | 1/2” | 1/2” | 1/2” | 1/2” |
| Throttling Device | TXV | |||||
| TXV Size | 2 Ton | 2 Ton | 3 Ton | 3 Ton | 4 Ton | 5 Ton |
| Liquid Valve Connection | 3/8” | 3/8” | 3/8” | 3/8” | 3/8” | 3/8” |
| Suction Valve Connection | 3/4” | 3/4” | 3/4” | 7/8” | 7/8” | 7/8” |
| Refrigerant Charge++ (lbs.) | 6.50 | 6.52 | 7.56 | 7.66 | 8.68 | 8.76 |
| CONDENSER FAN MOTOR | ||||||
| Rated HP | 1/10 | 1/10 | 1/4 | 1/5 | 1/4 | 1/4 |
| Rated RPM | 1100 | 1100 | 1075 | 1075 | 1075 | 1075 |
| Air-flow Rate (ACFM) | 2207 | 2201 | 3105 | 3125 | 3835 | 3830 |
| Rated FLA | 0.75 | 0.75 | 1.10 | 1.10 | 1.60 | 1.60 |
| CONDENSER COIL^ | ||||||
| Model Number (Contact Manufacturer) | CR361002413 | CR361002413 | CR361052414 | CR361052414 | CR401102216 | CR401102218 |
| Face Area, Sq. Ft. | 25 | 25 | 26.25 | 26.25 | 30.56 | 30.56 |
| ELECTRICAL DATA* | ||||||
| Voltage/Phase-Hz | 208/230/1-60 | 208/230/1-60 | 208/230/1-60 | 208/230/1-60 | 208/230/1-60 | 208/230/1-60 |
| MCA/MOP** | 17.6/30 | 16.8/30 | 18.7/30 | 23.5/40 | 26.5/45 | 34.6/60 |
| SOUND POWER (dBA) | 73 | 73 | 74 | 77 | 77 | 79 |
| MODELS | CRC14024 | CRC14030 | CRC14036 | CRC14042 | CRC14048 | CRC14060 |
| INSTALLED/SHIPPING WEIGHT + | 207/222 | 208/223 | 223/238 | 244/264 | 285/305 | 289/309 |
| MODELS | CRR14024 | CRR14030 | CRR14036 | CRR14042 | CRR14048 | CRR14060 |
| INSTALLED/SHIPPING WEIGHT+ | 218/233 | 219/234 | 239/254 | 260/280 | 304/324 | 308/328 |
+in lb.
^ Condenser Coil Configuration (Contact Manufacturer)
++Unit Full Charge includes 25Ft of Liquid andSuction Line Set.
**Minimum Circuit Ampacity/MaximumOvercurrent Protection
DIMENSIONS:
| MODELS | DIMENSIONS* | ||
| L | W | H | |
| CRC14024 | 42.01 | 37.25 | 36.25 |
| CRR14024 | 37.25 | 36.50 | 36.25 |
| CRC14030 | 42.01 | 37.25 | 36.25 |
| CRR14030 | 37.25 | 36.50 | 36.25 |
| CRC14036 | 43.69 | 38.88 | 36.25 |
| CRR14036 | 39.25 | 38.50 | 36.25 |
| CRC14042 | 43.69 | 38.88 | 36.25 |
| CRR14042 | 39.25 | 38.50 | 36.25 |
| CRC14048 | 46.60 | 40.50 | 40.25 |
| CRR14048 | 41.25 | 40.50 | 40.25 |
| CRC14060 | 46.60 | 40.50 | 40.25 |
| CRR14060 | 41.25 | 40.50 | 40.25 |
*Inches
AHRI 210/240 STANDARD RATINGS
| OUTDOOR UNIT SERIES | INDOOR UNIT SERIES | COOLING CAPACITY | ENERGY EFFICIENCY | INDOOR (CFM) | ||||
| OUTDOOR UNIT MODEL | OUTDOOR COIL MODEL | INDOOR UNIT MODEL | INDOOR COIL MODEL | TOTAL CAPACITY | S.H.R** | EER^ | SEER^^ | |
| CRC14024*1111 CRR14024*1111 |
CR361002413 | AHRC14024*** AHRR14024*** |
AH16221634 AH16221636+ AH16221638 |
23720 | 0.72 | 11.78 | 14.20 | 792 |
| CRC14030*1111 CRR14030*1111 |
CR361002413 | AHRC14030*** AHRR14030*** |
AH16221634 AH16221636+ AH16221638 |
28865 | 0.68 | 11.74 | 14.08 | 995 |
| CRC14036*1111 CRR14036*1111 |
CR361052414 | AHRC14036*** AHRR14036*** |
AH16261634 AH16261636+ AH16261638 |
35859 | 0.70 | 11.66 | 14.33 | 1188 |
| CRC14042*1111 CRR14042*1111 |
CR361052414 | AHRC14042*** AHRR14042*** |
AH16261634 AH16261636+ AH16261638 |
41825 | 0-72 | 12.10 | 14.28 | 1393 |
| CRC14048*1111 CRR14048*1111 |
CR401102216 | AHRC14048*** AHRR14048*** |
AH16301634 AH16301636+ AH16301638 |
47952 | 0.70 | 11.39 | 14.19 | 1568 |
| CRC14060*1111 CRR14060*1111 |
CR401102218 | AHRC14060*** AHRR14060*** |
AH16301634 AH16301636+ AH16301638 |
58721 | 0.69 | 11.18 | 14.21 | 1875 |
**S.H.R. = Sensible Heat Ratio
+Indoor Coil Used for the Rating
^Energy Efficiency Ratio
^^Seasonal Energy Efficiency Ratio
