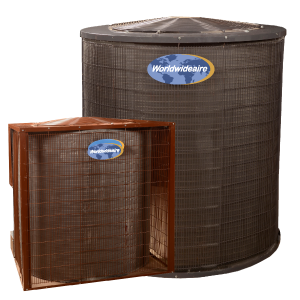

CRC16/CRR16

16 SEER/2-5 Tons
SPLIT SYSTEM CONDENSING UNIT
24,000-60,000 Btu/h Cooling Capacity

HIGH PERFORMANCE SERIES IIR410A/GREEN PRODUCTSII

DESIGN FEATURES:

  • Oval coil design suppresses flow recirculation, separation and corner singularities for high energy efficiency+
  • R-410A Environment friendly refrigerant
  • Energy-efficient single and two-stage Scroll compressors
  • High performance PSC and ECM motors
  • Rifled copper tube/enhanced aluminum Lanced fin
  • High and low pressure switches for equipment protection
  • Equipped with Emerson Comfort Alert Diagnosis
  • Powdered coated cabinet to prevent rust
  • Easy access to covered and protected service valves
  • Sound level in 70-75 dBA range with compressor blanket
  • Conform to AHRI/ASHRAE Standards
  • Meet Energy-Star ratings

CONDENSING UNIT NOMENCLATURE



CR C 16 042 C A 1 1 1 1
Product Type Cabinet Configuration Unit Efficiency Unit Capacity Operating Mode Series Revision Compressor Type Condenser Motor Type Throttling Device Voltage
Product Type
CR = Condensing Unit for Residential Split System

Cabinet Configuration
C = Circular Oval
R = Rectangular

Unit Efficiency
(Seasonal Energy Efficiency Rating – SEER)
13 – 13 SEER
14 – Up to 14 SEER
15 – Up to 15 SEER
16 – Up to 16 SEER
17 – Up to 17 SEER
18 – Up to 18 SEER
21 – Up to 21 SEER

Unit Capacity (Nominal)
024 = 2 Tons (24,000 Btu/h)
030 = 2 ½ Tons (30,000 Btu/h)
036 = 3 Tons (36,000 Btu/h)
042 = 3 ½ Tons (42,000 Btu/h)
048 = 4 Tons (48,000 Btu/h)
060 = 5 Tons (60,000 Btu/h)

Operating Mode
C = Cool Only
H = Heat Pump

Series Revision
Coil Configuration, etc.
(Contact Manufacturer)
Compressor Type
1 – R410 Single Stage (1 Speed) Copeland Scroll Compressor
2 – R410 Two Stage (2 Speeds) Copeland Scroll Compressor
3 – R410 Digital (Variable Speeds) Copeland Scroll Compressor

Condenser Motor Type
1 = PSC, GE
2 = ECM, GE

Throttling Device
1 = Thermostatic Expansion Valve (TXV)
2 = Automatic Expansion Valve (AXV)
3 = Orifice (Piston) Expansion Valve

Voltage Type
1 – 208/230 V, 1 Ph., 60 Hz.
2 – 208/230 V, 1 Ph., 50 Hz.
3 – 208/230 V, 3 Ph., 60 Hz.
4 – 480 V, 3 Ph., 60 Hz.
5 – 460/230 V, 3 Ph., 60 Hz.
6 – 380/415 V, 3 Ph., 50 Hz.
7 – 575V, 3 Ph., 60Hz

CONDENSING UNIT SPECIFICATIONS

MODELS: CRC16024
CRR16024		 CRC16030
CRR16030		 CRC16036
CRR16036		 CRC16042
CRR16042		 CRC16048
CRR16048		 CRC16060
 CRR16060
UNIT CAPACITY
Nominal Cooling (Btu/h) 24,000 30,000 36,000 42,000 48,000 60,000
SEER (Nominal) 16 16 16 16 16 16
Compressor COPELAND SCROLL
RLA 11.7 13.1 15.3 17.9 21.2 27.1
LRA 58.3 73.0 83.0 96.0 104.0 152.9
REFRIGERATION SYSTEM
Refrigerant Type R-410A
Refrigerant Line Set:
Liquid Line Diameter 3/8” 3/8” 3/8” 3/8” 3/8” 3/8”
Suction Line Diameter 3/4” 3/4” 3/4” 7/8” 7/8” 7/8”
Discharge Line Diameter 1/2” 1/2” 1/2” 1/2” 1/2” 1/2”
Throttling  Device TXV
TXV Size 2 Ton 2 Ton 3 Ton 3 Ton 4 Ton 5 Ton
Liquid Valve Connection 3/8” 3/8” 3/8” 3/8” 3/8” 3/8”
Suction Valve Connection 3/4” 3/4” 3/4” 7/8” 7/8” 7/8”
Refrigerant Charge++ (lbs.) 6.56 6.68 11.16 11.45 13.20 13.88
CONDENSER FAN MOTOR
Rated HP 1/10 1/10 1/6 1/6 1/4 1/4
Rated RPM 800 1100 1075 1075 1075 1075
Air-flow Rate (ACFM) 2575 2583 3252 3259 3823 3841
Rated FLA 0.7 0.7 1.0 1.0 1.8 1.8
CONDENSER COIL^
Model Number (Contact Manufacturer) CR361002415 CR361002415 CR361052426 CR361052428 CR401102229 CR401102229
Face Area, Sq. Ft. 25.00 25.00 26.25 26.25 30.56 30.56
ELECTRICAL DATA
Voltage/Phase-Hz 208/230/1-60 208/230/1-60 208/230/1-60 208/230/1-60 208/230/1-60 208/230/1-60
MCA/MOP** 15.3/25 17.1/30 20.1/35 23.4/40 28.3/50 35.7/60
SOUND POWER, Lo/Hi (dBA) 70.2/70.8 70.5/71.0 71.4/71.9 72.0/73.0 74.2/74.8 74.9/75.1
MODELS CRC16024 CRC16030 CRC16036 CRC16042 CRC16048 CRC16060
INSTALLED/SHIPPING WEIGHT+ 207/222 208/223 258/273 281/301 329/349 333/353
MODELS CRR16024 CRR16030 CRR16036 CRR16042 CRR16048 CRR16060
INSTALLED/SHIPPING WEIGHT+ 218/233 218/233 277/292 300/320 351/371 355/375

+in lbs.
^ Condenser Coil Configuration (Contact Manufacturer)
++Unit Full Charge includes 25Ft of Liquid and Suction Line Set.
**Minimum Circuit Ampacity/Maximum  Overcurrent Protection

DIMENSIONS:

MODELS DIMENSIONS*
L W H
CRC16024 42.01 37.25 36.25
CRR16024 37.25 36.50 36.25
CRC16030 42.01 37.25 36.25
CRR16030 37.25 36.50 36.25
CRC16036 43.69 38.88 36.25
CRR16036 39.25 38.50 36.25
CRC16042 43.69 38.88 36.25
CRR16042 39.25 38.50 36.25
CRC16048 46.60 40.50 40.25
CRR16048 41.25 40.50 40.25
CRC16060 46.60 40.50 40.25
CRR16060 41.25 40.50 40.25

*Inches

AHRI 210/240 STANDARD RATINGS

OUTDOOR UNIT SERIES INDOOR UNIT SERIES COOLING CAPACITY ENERGY EFFICIENCY INDOOR (CFM) HIGH/LOW
OUTDOOR UNIT MODEL OUTDOOR COIL MODEL INDOOR UNIT MODEL INDOOR COIL MODEL TOTAL CAPACITY S.H.R** EER^ SEER^^
CRC16024*2111
CRR16030*2111		 CR361002415 AHRC16024***
AHRR16024***		 AH16221636+
AH16221634
AH16221638+		 23645
25255		 0.72
0.75		 13.15
13.35		 16.22
16.07		  786
815/652
CRC16030*2111
CRR16030*2111		 CR361002415 AHRC16030***
AHRR16030***		 AH16221636+
AH16221634
AH16221638+		 28634
29651		 0.69
0.73		 13.26
13.10		 16.11
16.23		 955
1006/805
CRC16036*2111
CRR16036*2111		 CR361052426 AHRC16036***
AHRR16036***		 AH16261636+
AH16261634
AH16261638+		 34850
35695		 0.70
0.71		 12.96
13.22		 16.16
16.26		 1203
1188/950
CRC16042*2111
CRR16042*2111		 CR361052428 AHRC16042***
AHRR16042***		 AH16261636+
AH16261634
AH16261638+		 41732
42330		 0.69
0.72		 12.98
13.10		 16.02
16.17		 1395
1387/1110
CRC16048*2111
CRR16048*2111		 CR401102229 AHRC16048***
AHRR16048***		 AH16301636+
AH16301634
AH16301638+		 47966
48128		 0.68
0.69		 13.08
13.22		 15.96
16.08		 1585
1611/1289
CRC16060*2111
CRR16060*2111		   CR401102229 AHRC16060***
AHRR16060***		 AH16301636+
AH16301634
AH16301638+		 56672
58835		 0.70
0.67		 13.21
13.29		 16.00
16.18		 1969
2007/1606

**S.H.R. = Sensible Heat Ratio
+Indoor Coil Used for the Rating
^Energy Efficiency Ratio
^^Seasonal Energy Efficiency Ratio
